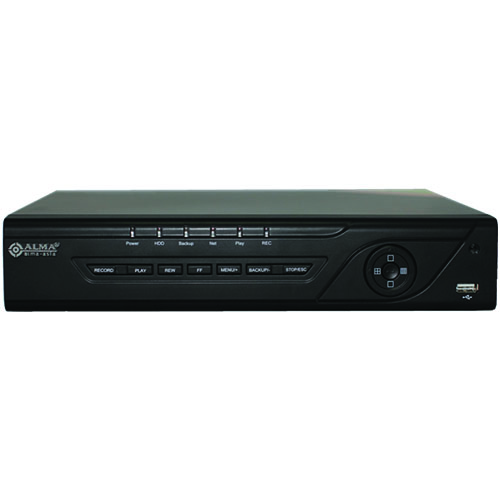

HD 4IN1 DVR ED6008ASL PRODUCT CATALOG 8 CH HD AHD video input, 1080P recording
Playback: 8 CH simultaneously playback; HDMI 1080P output *
Backup: USB, IE, CMS; support multi-file, file cutting when backup
Pentaplex: live, record, playback, backup and remote operation
DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
Multi-user online simultaneously
Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
Cell phone: iPhone, Android
| Compression Format | H.264 High Profile |
|---|---|
| Video Input | BNC*8, Support 1080P@25/SOFPS, 720P@25/ 30FPS, WD1, D1, IPC*4/ 24MBPS |
| Video Output | VGA*1: 1080P (1920*1080), HDMI*1: 1080P (1920*1080) BNC*1: Used As The Main Output Or Spot Output |
| Audio Input | RCA*4 |
| Audio Output | RCA*1 |
| Sync System | yes |
| IR Leds | 42PCS Φ5 IR 850nm LED |
| IR Distance | 35m |
| S/D Ratio | Yes |
| Video Output | AHD / TVI / CVI 1080P (4KV Lightning Protection) |
| Day & Night Function | External Control (Default) / Auto / Colour / B/W (OSD Switch) |
| Motion Detection | 4 AREA Adjustable |
| Mirror Image | Yes |
| Image Adjustment | Yes |
| Lightning Proof | Yes |
| Power Supply | DC 12V (Wide Voltage 5~16V), 400mA (IR ON) |
| Dimension | 236mm (L) x 93mm (W) x 74mm (H) |
| Weight | 560g |
